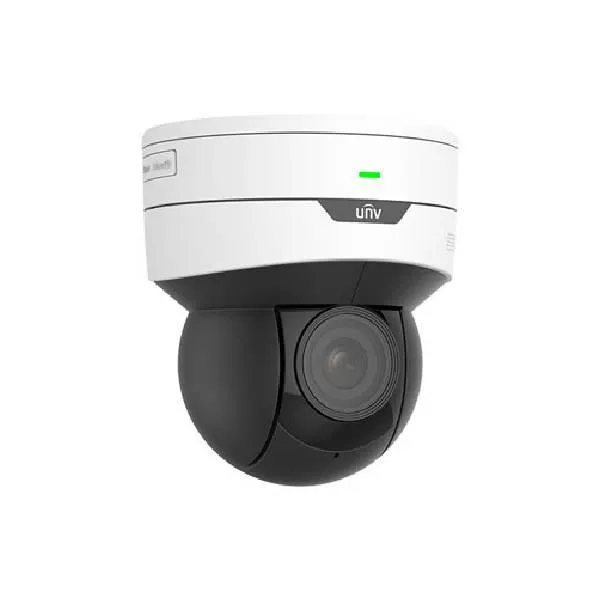

High quality 5 megapixel indoor dome camera, with Wi-Fi connection, built in mic & speaker, supports two way audio with IR to 30 metres.
Model: IPC6415SR-X5UPW
Night Vision | IR 30 Metres| Commercial | Built in Mic & Speaker
Shop CTC Communications for Best Deals on CCTV.
Flat Rate Shipping Fast Delivery
Features
- High quality image with 5MP,1/2.7 CMOS sensor
- 2880*1620@30fps in the main stream, 16:9 aspect ratio
- Ultra 265, H.265, H.264, MJPEG
- 5X optical zoom allows for closer viewing of subjects
- ensures ultra-high image quality in low illumination environment
- Up to 120 dB Optical WDR (Wide Dynamic Range)
- Wi-Fi connection and easy installation
- Built-in Mic & Speaker, support two-way audio
- Alarm 1 in and 1 out
- Smart IR, up to 30m (98 ft) IR distance
Specifications
| IPC6415SR-X5UPW-VG | |||||
| Camera | |||||
| Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS | ||||
| Min. Illumination | Colour:0.003 lux (F1.2, AGC ON) 0 lux with IR | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
| WDR | 120dB | ||||
| S/N | 56dB | ||||
| Lens | |||||
| Lens type | [email protected], AF automatic focusing and motorized zoom lens | ||||
| Iris | Auto aperture | ||||
| Angle of View (H) | 106.9~30.6 | ||||
| Angle of View (V) | 56.0~17.7 | ||||
| Angle of View (O) | 131.5~39.8 | ||||
| DORI | |||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 2.7 | 70.9(232.5ft) | 28.4(93.0ft) | 14.2(46.5ft) | 7.1(23.3ft) | |
| 13.5 | 247.5(812.0ft) | 99.0(324.8ft) | 49.5(162.4ft) | 24.8(81.2ft) | |
| Illuminator | |||||
| IR Range | Up to 30m (98 ft) IR range | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| Frame Rate | Main Stream: 5MP (2880*1620),Max 30fps; Sub Stream: 720P (1280*720), Max 30fps; Third Stream: D1 (720*576), Max 30fps | ||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||
| U-code | Support | ||||
| ROI | Support | ||||
| Video stream | Triple streams | ||||
| OSD | Up to 8 OSDs | ||||
| Privacy Mask | 24 areas, up to 4 areas per scene | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| Smart IR | Support | ||||
| Flip | Normal/Flip Vertical/Flip Horizontal/180 | ||||
| HLC | Support | ||||
| BLC | Support | ||||
| Defog | Digital Defog | ||||
| Events | |||||
| Basic Detection | Motion detection, Audio detection, Tampering alarm | ||||
| General Function | Watermark, IP Address Filtering, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
| Audio | |||||
| Audio Compression | G.711U, G.711A | ||||
| Audio Bitrate | 64 Kbps | ||||
| Two-way Audio | Support | ||||
| Suppression | Support | ||||
| Sampling Rate | 8 kHz | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 256 GB | ||||
| Network Storage | ANR,NAS(NFS) | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS | ||||
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T), API, SDK | ||||
| User/Host | Up to 32 users. 2 user levels: administrator and common user | ||||
| Security | Password protection, strong password, HTTPS encryption, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF | ||||
| Client | EZStation EZLive EZView | ||||
| Web Browser | Plug-in required live view: IE9 , Chrome 41 and below, Firefox 52 and below | ||||
| Pan & Tilt | |||||
| Pan Range | 350 | ||||
| Pan Speed | 0.1/s ~ 60/s | ||||
| Preset speed: 60/s | |||||
| Tilt Range | 0 ~ 90 | ||||
| Tilt Speed | 0.1 ~ 50/s | ||||
| Preset speed: 50/s | |||||
| Number of Presets | 1024 | ||||
| Preset Patrol | 16 patrols, up to 64 presets for each patrol | ||||
| Patrol Stay Time | 120s~1800s | ||||
| Preset Image Freeze | N/A | ||||
| Home Position | Support | ||||
| Interface | |||||
| Audio I/O | N/A | ||||
| Alarm I/O | 1/1 | ||||
| Serial Port | 1 RS485 | ||||
| Built-in Mic | Support | ||||
| Built-in Speaker | Support | ||||
| WIFI | Support (IEEE802.11b/g/n) | ||||
| Network | 1 * RJ45 10M/100M Base-TX Ethernet | ||||
| Video output | N/A | ||||
| Certification | |||||
| EMC | FCC Part 15 EN 55032:2015 EN 55024:2010 EN 61000-3-2:2014 EN 61000-3-3-2013 | ||||
| Safety | IEC 62368-1 EN 62368-1 UL 60950-1 | ||||
| Environment | CE-ROHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006) | ||||
| General | |||||
| Power | DC12V(25%), PoE (IEEE 802.3at) | ||||
| Power consumption: Max 15W | |||||
| Power Interface | 5.5mm coaxial power plug | ||||
| Dimensions ( x H) | 129 x 143.6mm (5.1 x 5.7) | ||||
| Weight | 0.76kg(1.67lb) | ||||
| Working Environment | -10~50(14F ~ 122F)Humidity: 95% RH (non-condensing) | ||||
| Storage Environment | -40~70(-40F ~ 158F)Humidity: 95% RH (non-condensing) | ||||
| Surge protection | 4KV | ||||
| Reset Button | Support | ||||
| Protection | Ingress Protection: N/A Vandal Resistant: N/A | ||||
